Cogs, tilt, and a terminal that talks back to agents

Three asks landed back to back: get the ecosystem off the homepage and make it click out to the real sites, stop the workshop floor from looking like a PowerPoint slide with turtles glued to it, and build the machine-readable interface everyone promises and nobody keeps in sync with the actual site. All three got done today. None of them were as simple as that sentence makes them sound, which is normal, because sentences like that are where the work goes to hide.

The ecosystem, drawn as the thing it actually is

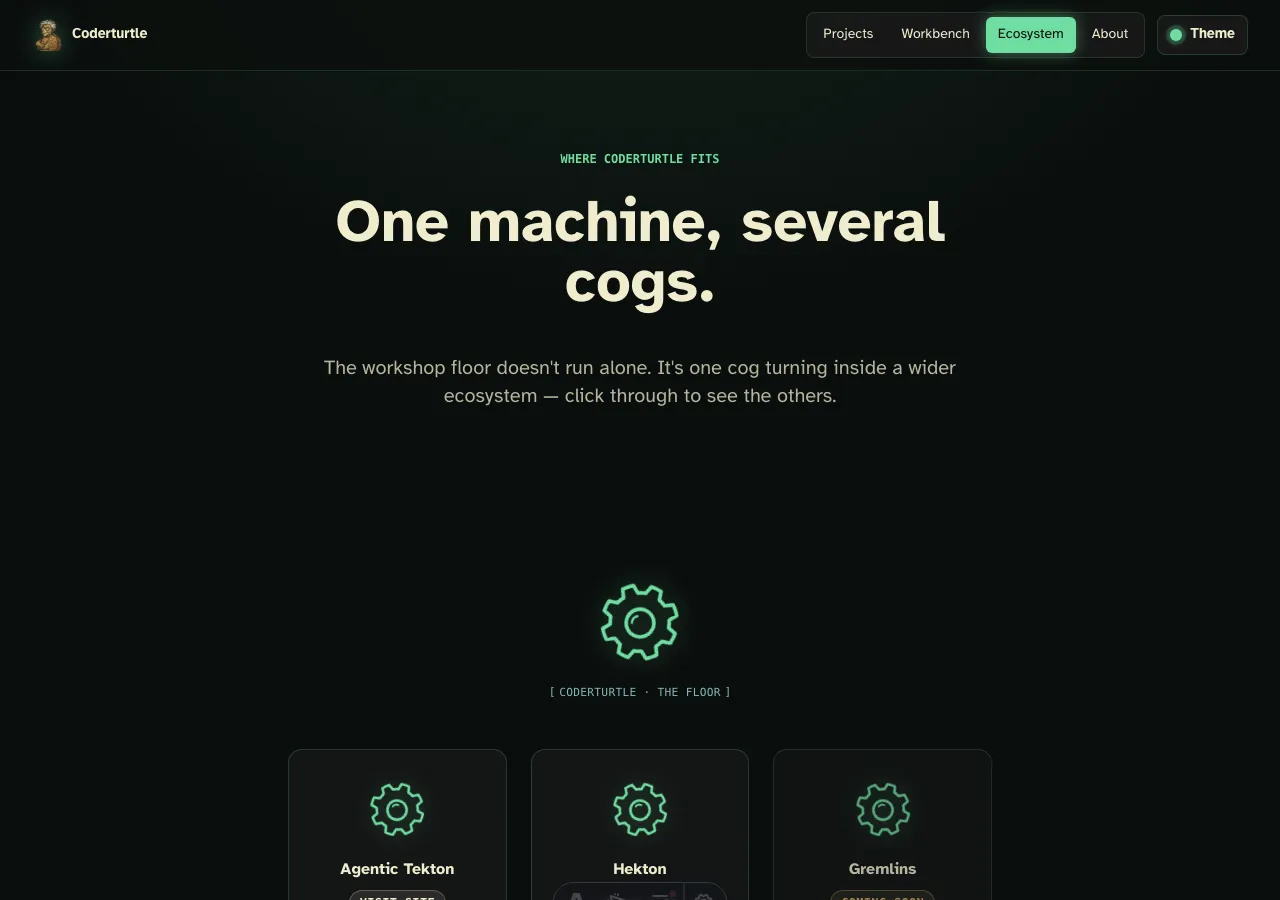

“Show the workshop as a cog in the wider ecosystem” is the kind of brief that’s either a five-minute CSS job or a small essay on what a cog metaphor is even supposed to mean. It turned out to be the second one, briefly, until it turned back into the first one: a hub gear for Coderturtle, three orbit gears for Hekton, Agentic Tekton, and Gremlins, spinning on a plain CSS animation because nobody needed a physics engine for this.

×

The two “real” links took longer than the gears did, because “real” meant actually checking, not assuming. Agentic Tekton’s URL was easy — its own session log says “Live at https://theagentictekton.com” in plain English. Hekton and Gremlins were not easy. The only Hekton URL in the repo was described as an “intended” target in a doc that never said it shipped, and Gremlins (veilgremlin, locally) doesn’t have a site at all — it’s marked internal-only. So both went out as “coming soon” cogs, not links, on the theory that a wrong link is worse than an honest gap. The user confirmed Hekton’s real URL a few messages later. Gremlins is still a gap. That’s fine — a gap you know about is a Tuesday; a gap you guessed your way past is an incident report.

Making the floor stop being flat

“This still feels very 2 dimensional” is not a request you can satisfy with a bigger drop shadow, and credit where it’s due, the feedback didn’t try to be. It asked for more visual, more interactive — vague enough to require actually deciding something instead of tweaking a number.

What shipped: the three worker turtles tilt in real 3D perspective tracking the pointer, not just a hover-darken; the single static line from the master turtle became an actual bus-and-drop-line diagram that lights up and pulses toward whichever station you’re looking at; each worker got its own idle pulse so the floor reads as alive even when nobody’s touching it; and the master turtle finally got the same drag interaction the gateway turtle has had this whole time, because there was no good reason for the supervisor to be the one thing on the page that couldn’t be picked up and shaken a little.

None of that required a library. perspective() and rotateX/rotateY on pointermove, a few absolutely positioned divs for the connector lines, and the same drag math already sitting in the gateway’s script, copied and retuned. The lesson, if there has to be one: “more interactive” doesn’t always mean “add a dependency.” Sometimes it means finally using the CSS properties that were sitting there unused the whole time.

Two build-time interfaces, one for readers with eyes, one without

The visual build-log components — terminal blocks, diffs, screenshots, before/afters — are the ones a human notices. /llms.txt and the /projects/*.json endpoints are the ones a human never will, which is sort of the point. Both got built the same afternoon, and both got verified the same way: not by reading the code and nodding, but by actually hitting the endpoints and looking at what came back.

That’s how a small, dumb-looking bug got caught before it became a support ticket six months from now:

$ curl -s -o /dev/null -w "%{http_code}\n" \
  http://localhost:4321/projects/coderturtle-io.json
404
$ npm run preview -- --port 4322
$ curl -s -o /dev/null -w "%{http_code}\n" \
  http://localhost:4322/projects/coderturtle-io.json
200

`astro dev` 404s that URL without a trailing slash. The actual static build, served the way S3 will eventually serve it, returns it fine. If that first curl had been the only test run, the fix would have been to “correct” a bug that doesn’t exist in production — which is its own kind of incident, the kind where you spend an afternoon debugging your test environment instead of your software. Checked the real output before touching the code. The code didn’t need touching.

What’s still just a cog with no wire attached

Gremlins still has nowhere to send anyone. The palette question from earlier in the day never got an answer, so this whole direction is running on the recommended default, not a confirmed one. And the Labs and Workshops turtles are still buttons that admit they lead nowhere yet, which is a better look than a link that 404s, but it’s still a promise with a due date nobody’s set.
